Fischer HybridPower 10 x 90 FUS K Wall Fixings x4

Write a review

SKU: 78255

HybridPower. Plastic meets steel. Strong, safe & simple. The fischer HybridPower combines the advantages of a classic plastic plug with…

Find Store

Click & Collect Only

Product Details

    £4.99

    In stock

    SKU: 78255 Categories: , , , Brand:

    Description

    HybridPower. Plastic meets steel. Strong, safe & simple.

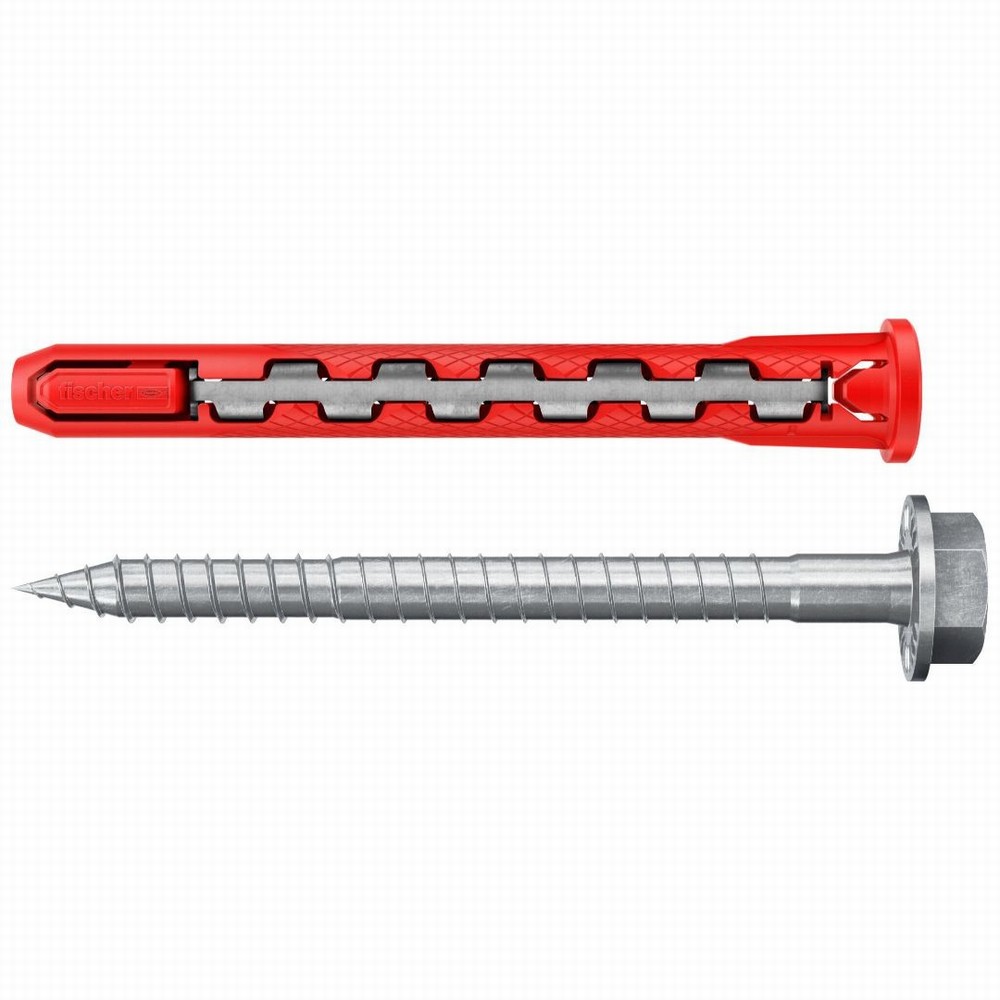

    The fischer HybridPower combines the advantages of a classic plastic plug with the security of a steel anchor. Thanks to the combination of the two materials, the HybridPower is set like a classic plug and can be used in all building materials. At the same time, it offers high load-bearing capacities and secure anchoring, even in the event of fire. The range is suitable for metal and timber attachments up to 30 mm. The plug can be used for push-through installation.

    Top Features

    • Safe like steel, easy to install like plastic.
    • The plastic casing of the plug enables quick and easy installation without a setting tools.
    • The metal part guarantees maximum load-bearing capacity.
    • Universally applicable: Suitable for all building materials and a wide range of applications.
    • Safe in the event of fire: Thanks to the metal component, the plug also holds under the influence of fire.

    Advantages

    • The HybridPower can be installed quickly and easily, just like a conventional plastic plug. It can be inserted by hand and no special tools or torque wrench are required.
    • Thanks to the metal component, the plug also holds heavy loads and offers a high load-bearing capacity and additional safety.
    • The HybridPower is universally applicable and can be used in solid and hollow building materials. The flexible plastic expands in any building material.
    • The metal component also withstands fire and offers certified safety in case of fire.
    • The included screw offers an appealing and straight finish to the fixing point, without protruding threaded rod.
    • The fixing point can be released at any time by simply removing the screw.

    Applications

    • TV mountings
    • Pull-up bars
    • Shelves
    • Kitchen hanging cabinets
    • Wardrobes
    • Lighting
    • Wooden slats
    • Metal brackets
    • Metal supports
    • Air conditioners
    • Plumbing and heating fixings

    Building Materials

    • Concrete
    • Solid sand-lime brick
    • Solid brick
    • Solid block made from lightweight and normal weight concrete
    • Vertically perforated brick
    • Perforated sand-lime brick
    • Hollow blocks made from lightweight concrete
    • Aerated concrete

    Functionality

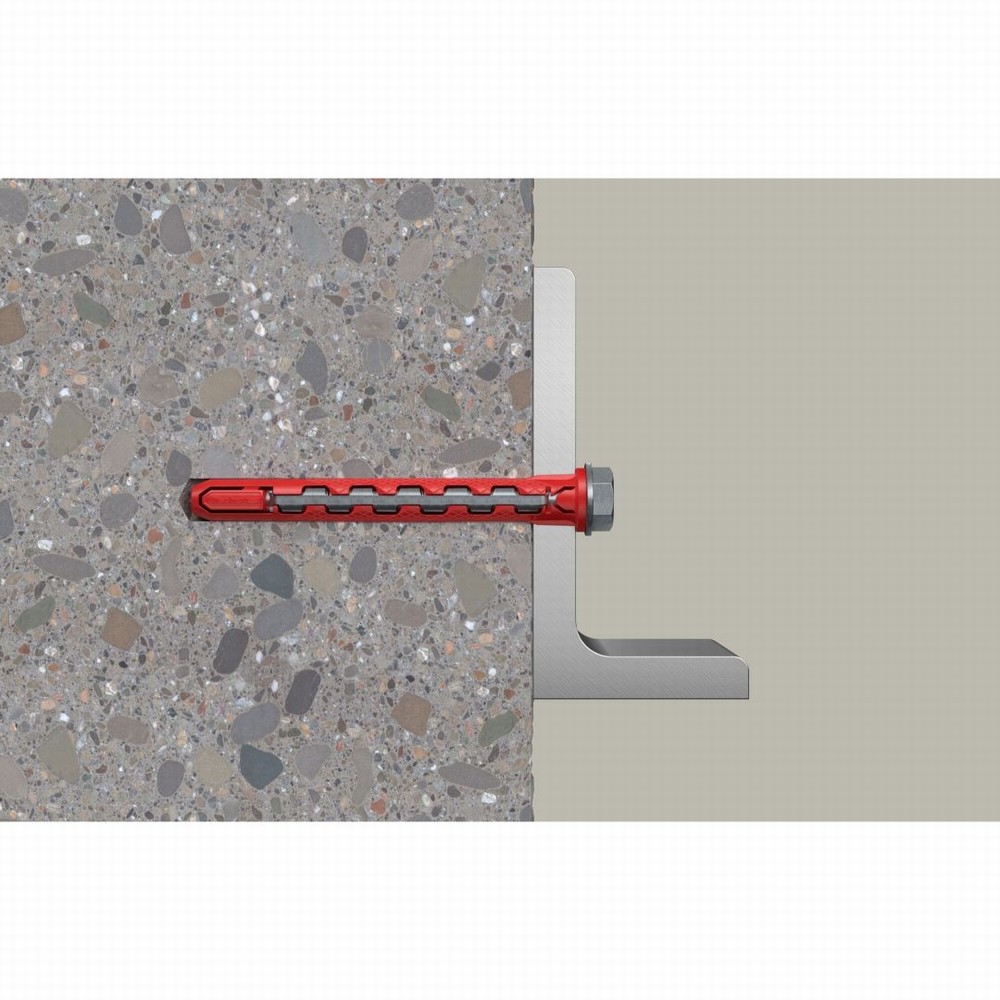

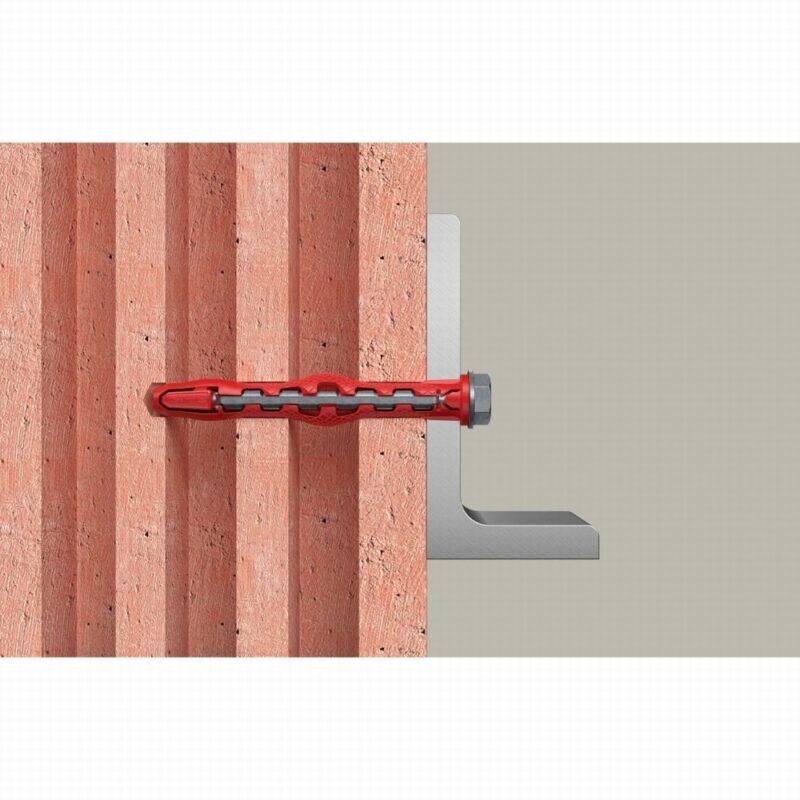

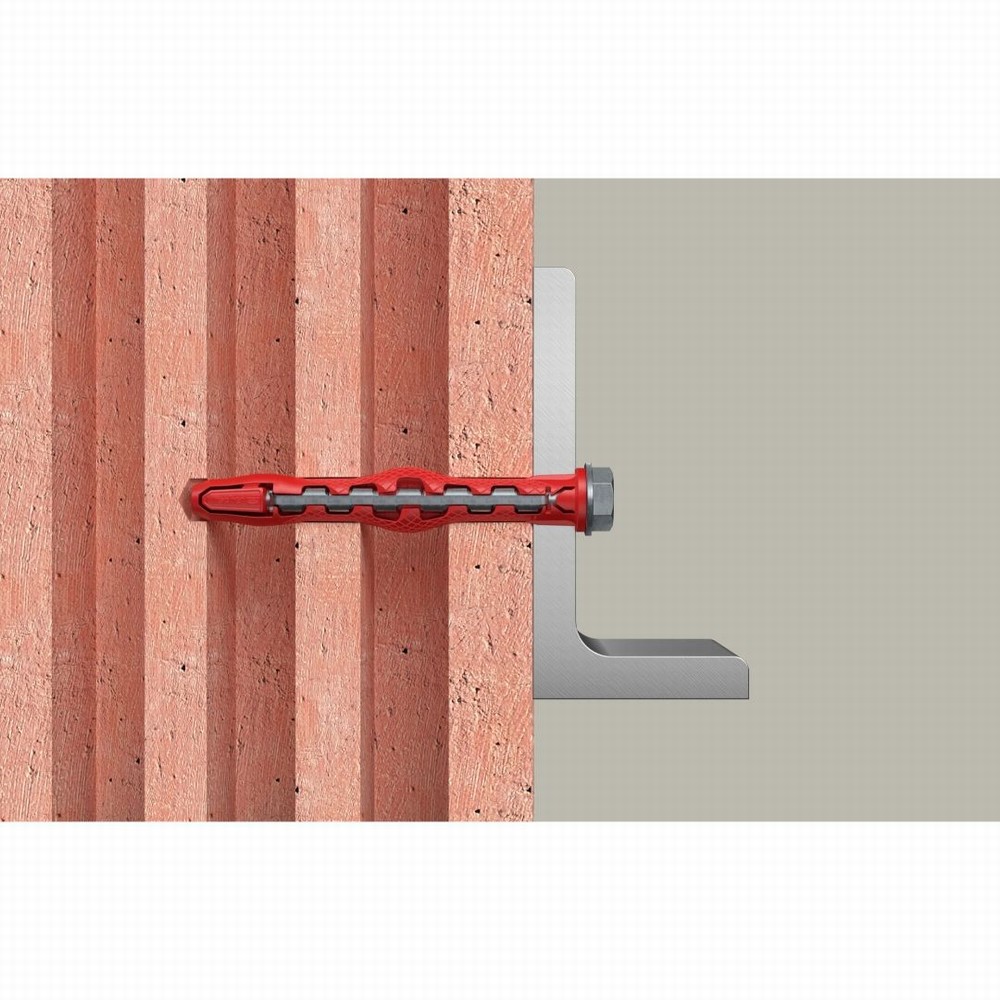

    • The HybridPower is suitable for push-through installation.
    • The plug is pushed directly into the drill hole by hand or with a few light hammer blows and then expands by screwing the screw into the building material.
    • The metal power wedges interlock with the building material for high load-bearing capacities.
    • The version with hexagon head screw with moulded washer HybridPower FUS is recommended for metal constructions.
    • The version with countersunk screw HybridPower T is recommended for timber constructions.

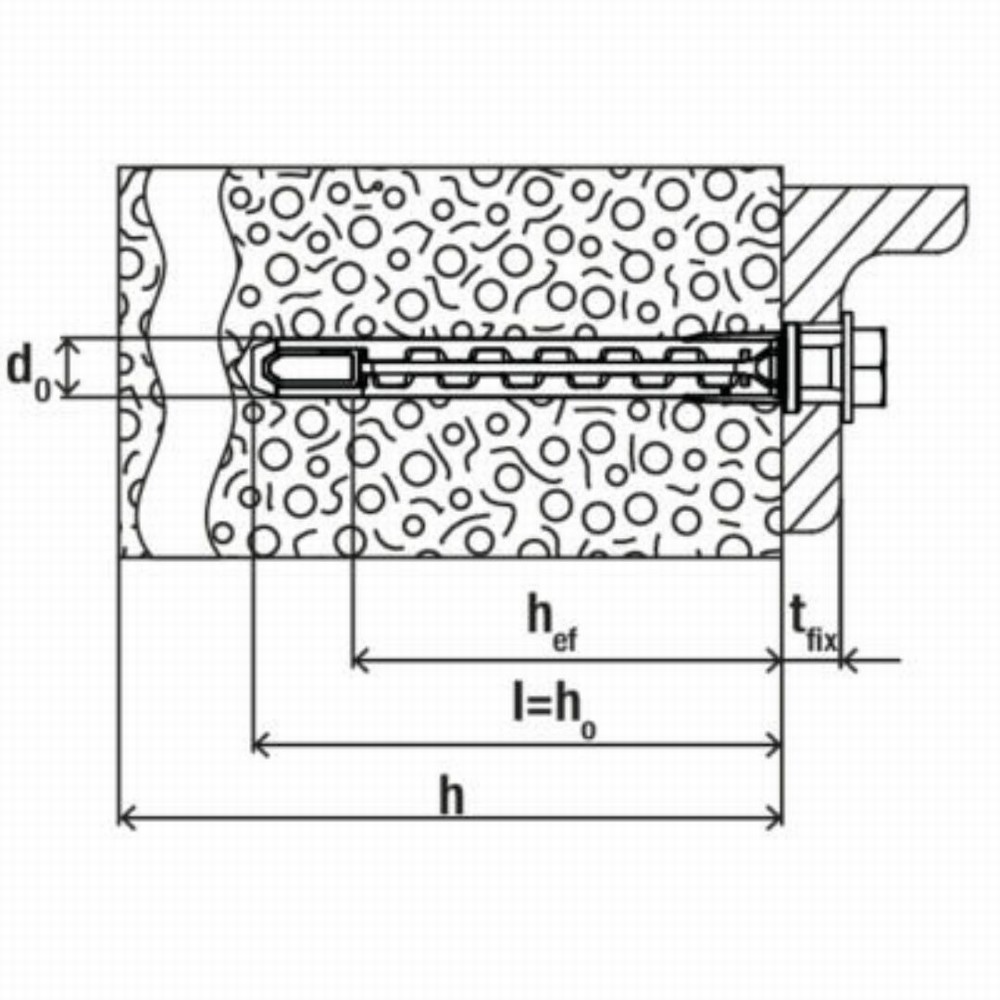

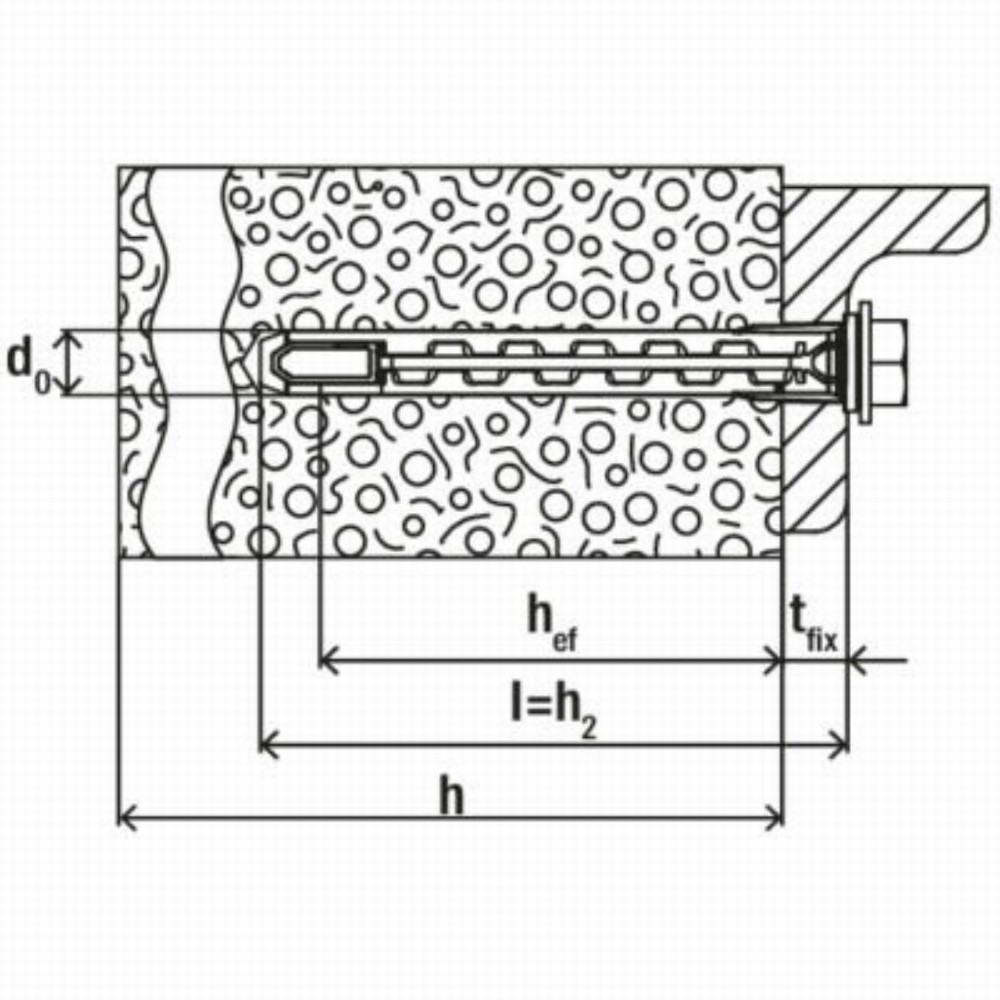

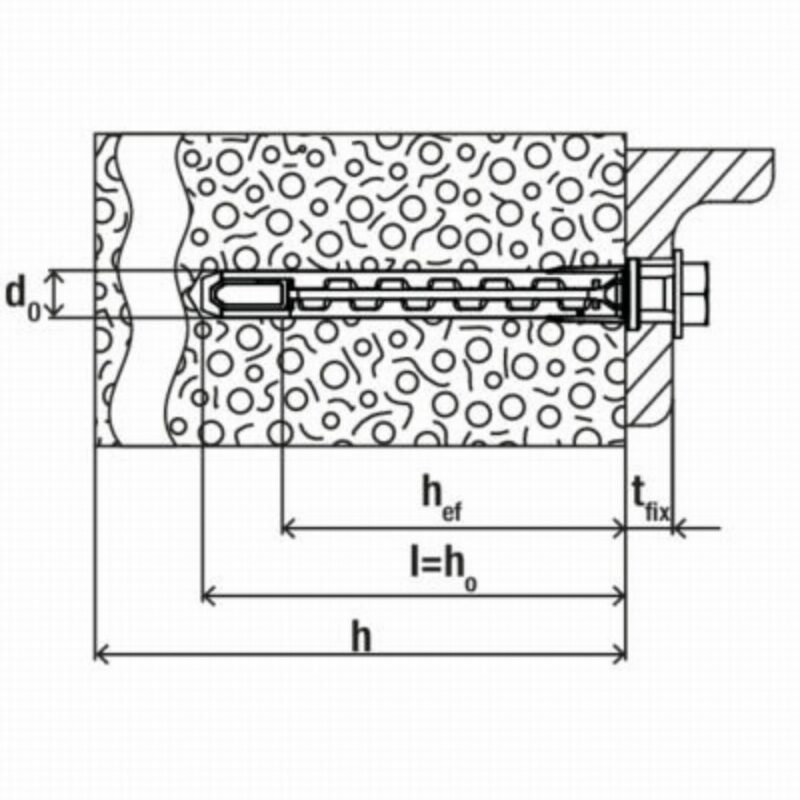

    Technical Data

    Drill diameter(d0)
    		 10 mm
    Anchor length(l)
    		 90 mm
    Screw dimension(ds x ls)
    		 7.0 x 89 mm
    Min. drill hole depth(h1)
    		 90 mm
    Min. effect. anchorage depth(hef)
    		 70 mm
    Max. fixture thickness(tfix)
    		 10 mm
    Drive
    		 TX40 / SW 13
    Width across nut
    		 13 mm
    Contents
    		 4x HybridPower 10 x 90
    4x Hexagonal head screw 7.0 x 89
    Amount
    		 4 pcs
